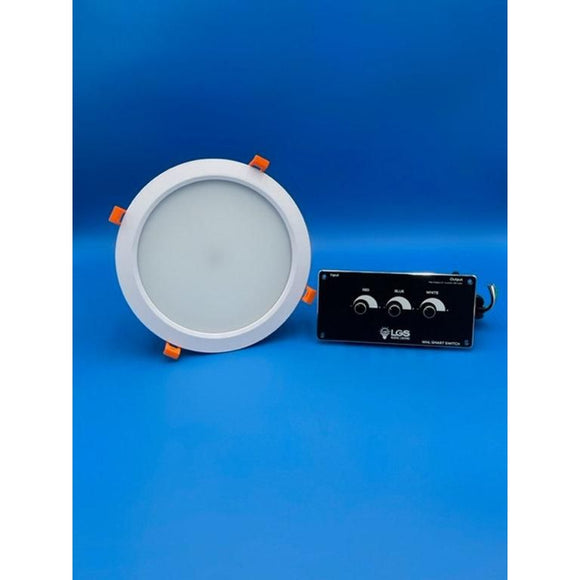

WH Down Light- 15W

8" Wheelhouse Downlight with White Frame, 15W, 100lm/W, 4000K Frost lens, Dimmable, 100° Beam, (4) Earthquake resistance mounting clips, 100~277V, 5-Year Warranty. Requires RBW SWITCH (SOLD SEPARATELY) Allowing the ability to select RED/BLUE/WHITE Illumination For Each Zone.

WHEELHOUSE DOWNLIGHT BROCHURE

KEY FEATURES

• White frame with frosted diffuser.
• Illuminates in three colors;  White-Red-Blue
• Dimmable in all three colors (0-10V)
• Energy consumption can be reduced by up to 80%.
• 3-Hour battery backup option
• Resistant to vibrations and jolts.
• Earthquake spring clips for secure mount to surface.
• Can be installed in Tandem.
• Highly efficient external driver with pigtail for easy connection to power.
• 5 year factory warranty.

PRODUCT SPECIFICATIONS

• Material: 6030 aluminum alloy polycarbonate lens cover
• LED package: SMD 2835
• Efficacy: Up to 100 lm/W
• Power consumption: 15W
• Beam angle: 120°
• Input voltage: 100~277V AC 50/60Hz
• Dimming: 0-10V
• THD:  <15%
• P.F.:  >0.95
• CRI: >80
• IP rating: IP54
• Fire rating: UL94V0
• Operating temperature:  -25°C ~ + 45°C
