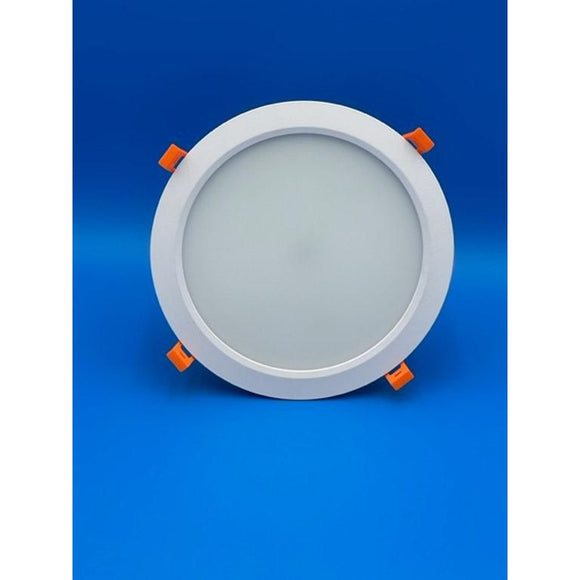

Down Light

LGS Marine’s Down Lights was constructed for a rugged environment. It is also suitable for an office environment. The fixture is supported by 4 Earthquake proof clips to ensure a secure installation and is resistant to vibrations and jolts. Energy consumption can be reduced by up to 80%. White Trim with Frosted Diffuser. Also available in 6" diameter upon special order. Optional emergency battery back-up. 5-year factory warranty
Resilient in harsh conditions like vibrations, jolts, and shocks. Easy install pigtail and spring clips. Available in various size and color configurations

DOWNLIGHT BROCHURE

KEY FEATURES

• White frame with frosted diffuser.
• Available in multiple color temperatures and wattages
• Energy consumption can be reduced by up to 80%.
• 3-Hour battery backup option
• Resistant to vibrations and jolts.

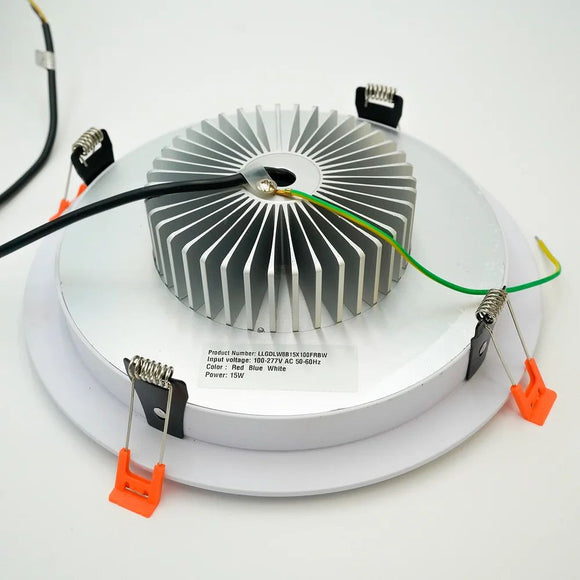

• Earthquake spring clips for secure mount to surface.
• Can be installed in Tandem.
• Highly efficient external driver with pigtail for easy connection to power.
• 5-year factory warranty.

PRODUCT SPECIFICATIONS

LED package: SMD 2835
Power consumption: 5 - 40W ±5%
Input voltage: 100~277V AC 50/60Hz
Efficacy: Up to 120 lm/W
THD:  <15%
P.F.:  >0.95
CRI: >80
Dimming:  (0-10V)
Material: 6030 aluminum alloy and polycarbonate lens cover
Beam angle: 120°
IP rating: IP54
Fire rating: 94V0
Operating temperature: -25°C ~ + 45°C
